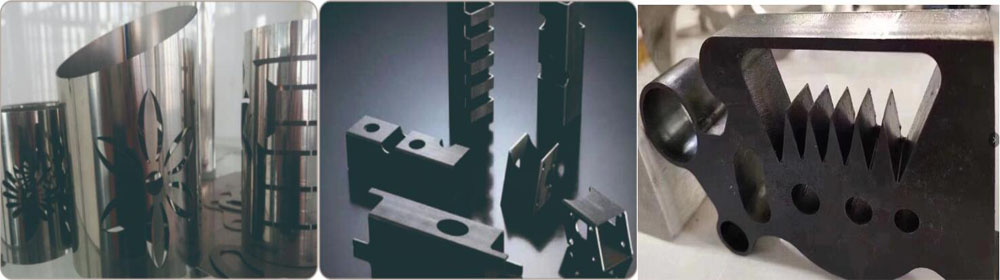

Applicable Industries：Railway transportation, ship building, automobile, construction machinery, agroforestry machinery, electrical manufacturing, elevator manufacturing, household applications, food machinery, textile machinery, tool processing, petroleum machinery, kitchenware and bathroom, decorative advertising, laser processing service etc. Cutting Materials： can be cut: Mild steel, stainless steel, aluminum alloy, brass, copper, pickling plate, galvanized plate, silicon steel, electrolytic plate, titanium alloy, manganese alloy.
vivian@hanstarmachine.com Feedback
| Machine Model | HSFT-3015 |
| Laser source | Fiber Laser |
| Laser power | 1000W-4000w |
| Sheet metal Cutting size | 3000mmX1500mm/4015/4020/6015/6020 |
| Pipe/tube | 3-6meters (optional) |
| Z axle stroke | 100 mm |
| Max positioning speed | 120m/min |
| Max height of feeding material | more than 120mm |
| Cooling way | water cooling |
| Laser wavelength | 1070nm |
| Min. cutting gap | ≤0.1mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.01 mm |
| Working temperature | 5℃-45℃ |
| Power requirement | 380V,50/60Hz(customized for you) |
| Continuous working time | 24 Hours |
| Machine dimensions | 8500*3200*1500mm |
| Machine weight | 6800kg |
